Ball Mill Series

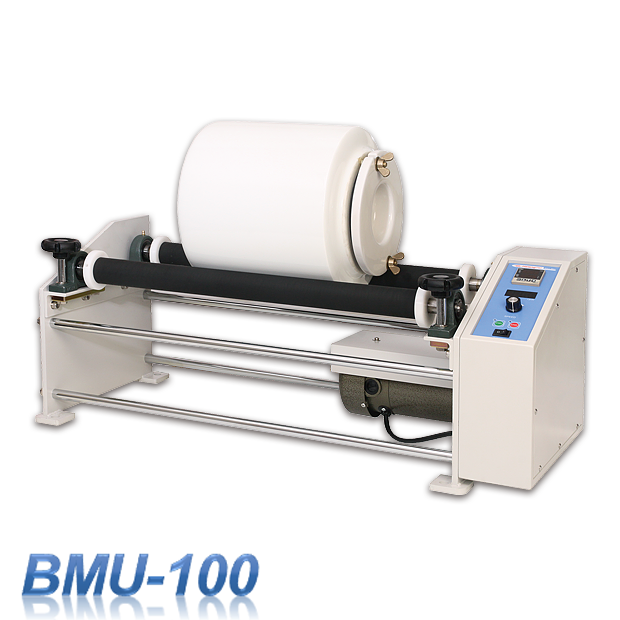

Floor-Type Ball Mill BMU-100

Floor-Type Ball Mill BMU-100

Speed 600 rpm; speed tuner; digital speed display; digital timer; with fuse protection device
DETAIL
●FEATURE :
1、Stepless-changeable speed
2、Digital speed display
3、With a timer
4、Suitable for different sizes of mill pots
5、Distance between rollers is adjustable.


●SPECIFICATION :
Model BMU-100
Speed 0~600 rpm
Acceptable Mill Pot Size Ø120~300 mm
Roller Quantity 2 Pcs
Roller Size Ø50 x L650 mm
Adjustable Distance 115~235 mm
Time Setting 0~99Hr,59Min
Overall Dimensions W970 x L384 x H360 mm
Motor 400W
Power AC 110/220V, 50/60Hz
*Mill pots & balls are necessary to purchase separately.

Catalogue P.1
