High speed type stirrer CH-7000D

High speed type stirrer CH-7000D

Speed 500~7000rpm，torque 12kgf.cm，DC-motor type stirrer，Stepless and stable speed，Digital tachometer，Overheat-protection device

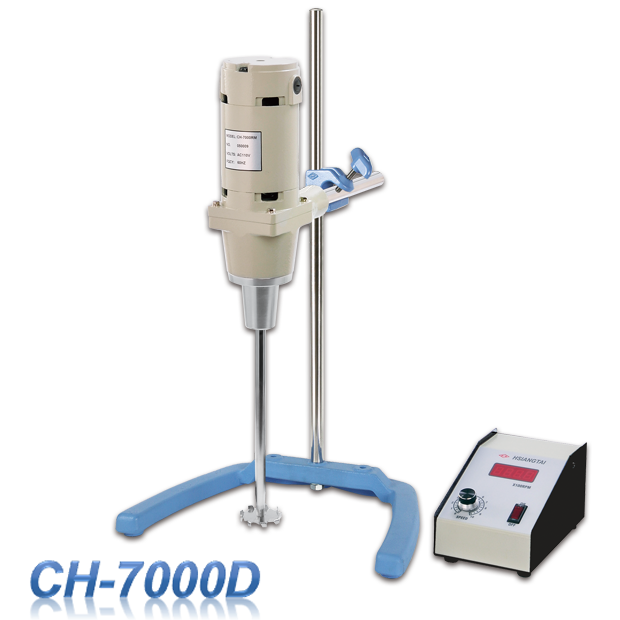

Electric High-Speed-Stirrer CH-7000D
/
DETAIL
● FEATURE:
1、Stepless and stable speed
2、Precise structure and quiet operation
3、Overheat protection device
4、With a digital tachometer
5、Normal pole&base/Spring-lift-pole&base sets available for optional purchase

● SPECIFICATION:
Model CH-7000D
Motor  DC350W
Speed 500~7,000 rpm
Torque 12kgf.cm / 1.18N.m
Body Net Weight 8 Kg
Power AC 110/220V, 50/60Hz
● Accessories
Stirring shaft assembly : Max. ø13 x 280mm
Propeller : No.11 ø 50mm，ø 80mm
Clamp
Pole : ø19 x 800mm ---  depend on whether the quotation includes them or not
Base : W400 x L315 x H54mm，6kg  --- depend on whether the quotation includes them or not

►Optional purchasing accessories. p.1
►Optional purchasing accessories. p.2
►The selection of a spring-lift pole should be based on the machine body weight.
►Catalogue p.1
