High Speed Type Stirrer

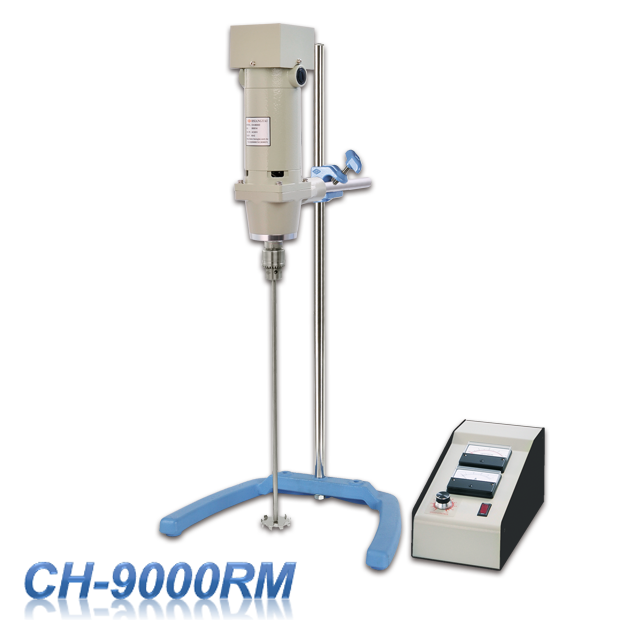

High speed type stirrer CH-9000RM

High speed type stirrer CH-9000RM

Speed 400~4000rpm,Torque 15kgf.cm,DC-motor type stirrer,Analog tachometer,Overheat-protection device
DETAIL
FEATURE:
1、Stepless and stable speed
2、Precise structure and quiet operation
3、Overheat protection device
4、With an analog tachometer and ammeter
5、Normal pole&base/Spring-lift-pole&base sets available for optional purchase


SPECIFICATION:
Model CH-9000RM
Motor  DC450W
Speed 400~4,000 rpm
Torque 15kgf.cm / 1.47N.m
Body Net Weight 10 Kg
Power AC 220V, 50/60Hz
Accessories
Stirring shaft : ø8 x 350mm
Propeller  : No.11 ø 50mm,ø 80mm
Clamp
Pole : ø19 x 800mm ---  depend on whether the quotation includes them or not
Base : W400 x L315 x H54mm,6kg  --- depend on whether the quotation includes them or not


Optional purchasing accessories. p.1
Optional purchasing accessories. p.2
►The selection of a spring-lift pole should be based on the machine body weight.
►Catalogue p.1
