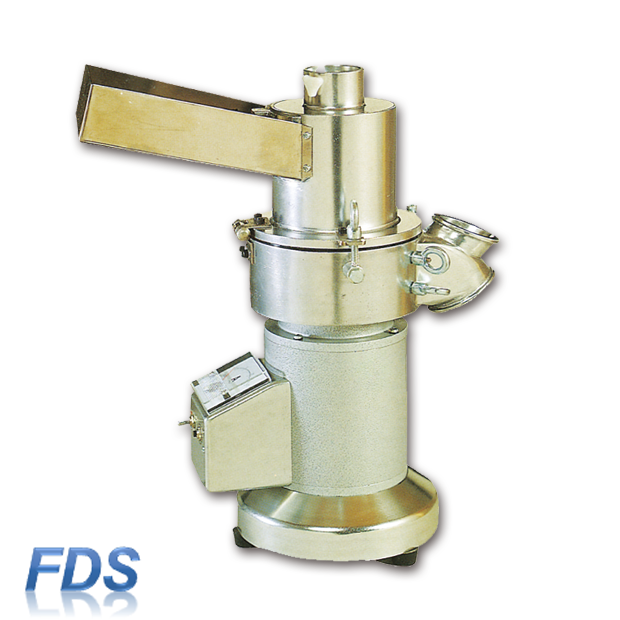

●FEATURE :
1、Available to do coarse and fine pulverization.
2、With a high-speed-motor
3、With an ultra-hard-tungsten carbide-blade, gets a fast pulverizing efficiency
4、Sieve mesh can be changed to meet the crushing fineness requirements.
5、With a safety device that the power will be cut off as soon as its pulverizing chamber is open.
●SPECIFICATION :
● STANDARD ACCESSORIES
Cloth pipes：Short cloth pipe (for ventilation purpose) x 1 pc, Long cloth pipe (for collection purpose) x 1 pc
Pole (for hanging the cloth pipe) x 1 pc
Stainless steel sieves：each size is 118 x 75m m (curve shape), includes different apertures 0.3mm x 2，0.4mm x 1，0.5mm x 1，3mm x 1，8mm x 1， 13mm x 1
Sieve holder x 1
►CATALOGUE P.1
1、Available to do coarse and fine pulverization.
2、With a high-speed-motor
3、With an ultra-hard-tungsten carbide-blade, gets a fast pulverizing efficiency
4、Sieve mesh can be changed to meet the crushing fineness requirements.
5、With a safety device that the power will be cut off as soon as its pulverizing chamber is open.
●SPECIFICATION :
| Model | FDS |
|---|---|
| SPEED | 3,600 rpm |
| PULVERIZING TROUGH SIZE | 175 x 175mm |
| SIEVE FRAME SIZE | 118 x 75 mm |
| OVERALL SIZE | W460 x L245 x H567 mm |
| WEIGHT | 25 Kgs |
| POWER | 110V-230V/60Hz |
Cloth pipes：Short cloth pipe (for ventilation purpose) x 1 pc, Long cloth pipe (for collection purpose) x 1 pc
Pole (for hanging the cloth pipe) x 1 pc
Stainless steel sieves：each size is 118 x 75
Sieve holder x 1
►CATALOGUE P.1
