●FEATURE :
●SPECIFICATION :
● STANDARD ACCESSORIES :
►CATALOGUE P.1
- Suitable for handling mineral substances, fiber, and slightly adhesive substances.
- With a powerful air cooling device to assist in cooling, so the crushing work can be carried out continuously.
Size of particles：above 150 mesh
Ordinary herbal medicine：0.6kg per 10 minutes
Adhesive substances：0.6kg per 15~20 minutes
●SPECIFICATION :

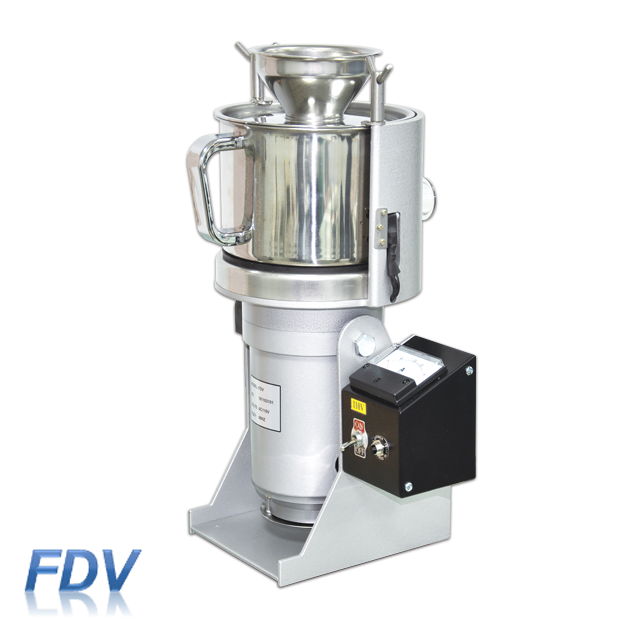

| Model | FDV |
|---|---|
| SPEED | 30,000 rpm |
| COLLECTION CONTAINER SIZE | 169 x 122mm |
| PULVERIZING TROUGH SIZE | 129 x 23 mm |
| OVERALL SIZE | W340 x L340 x H510 mm |
| WEIGHT | 14 Kgs |
| POWER | AC 110/220V, 50/60Hz, 2HP |
● STANDARD ACCESSORIES :
| 1 | Total 15 Blades : Streight blade x 5, L-curve blade x 4, M-curve blade x 4, Prepeller blade x 2 |
| 2 | Anti-overflow sleeves : L-size x 1, S-size x 1 |
| 3 | Collecting pipes : L-size x 1, S-size x 1 |
| 4 | Anti-powder rubber packing (Packing #1) : 1 pc |
| 5 | Other tools : ◎Screwdriver ◎Open-end wrench ◎Clip |
