● FEATURE :
1、Utilizes rapidly rotation in the liquid with a magnet-bar to create a stirring effect; suitable for liquids with good fluidity.
2、Operation is quiet, and the magnet-bar is easy to clean and sterilize.
3、The surface material of the plate is aluminum alloy.
4、LED digital speed display
5、HMS-520-E is with one thermocouple, can control the temperature in the beaker precisely.
● SPECIFICATION :
● STANDARD ACCESSORY
Stirring magnet-bar : ø8 x L35mm x 1pc
►CATALOGUE P.1
1、Utilizes rapidly rotation in the liquid with a magnet-bar to create a stirring effect; suitable for liquids with good fluidity.
2、Operation is quiet, and the magnet-bar is easy to clean and sterilize.
3、The surface material of the plate is aluminum alloy.
4、LED digital speed display
5、HMS-520-E is with one thermocouple, can control the temperature in the beaker precisely.
● SPECIFICATION :

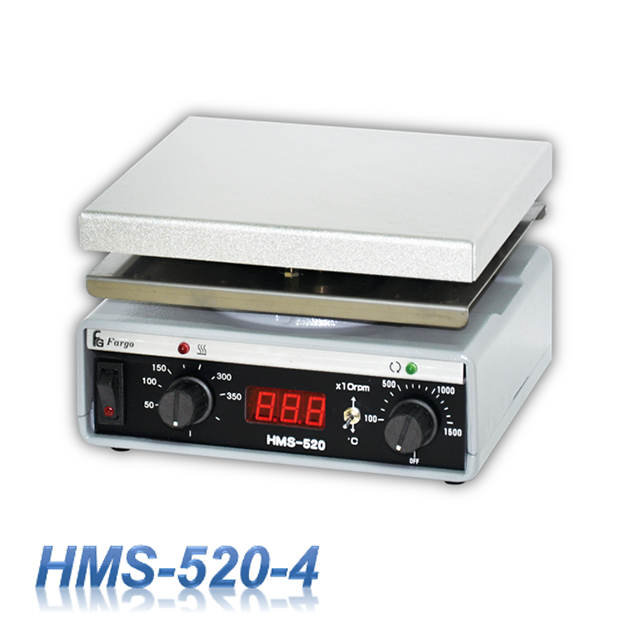

| Model | HMS-520-4 | HMS-520-4E |
|---|---|---|
| Stirring Capacity | 50 ~ 3000 ml (H₂O) | 50 ~ 3000 ml (H₂O) |
| Speed | 90 ~1,500 rpm ±10 rpm | 90 ~1,500 rpm ±10 rpm |
| Heating Temperature | Max. 350 ℃ ±2 ℃ | Max. 350 ℃ ±2 ℃ (附電熱偶) |
| Plate Size | 160 x 190 mm | 160 x 190 mm |
| Overall Dimensions | W220 x L170 x H130 mm | W220 x L170 x H130 mm |
| Watt | 500 W | 500 W |
| Power | AC 110/220V, 50/60Hz | AC 110/220V, 50/60Hz |
Stirring magnet-bar : ø8 x L35mm x 1pc
►CATALOGUE P.1
