Ball Mill Series

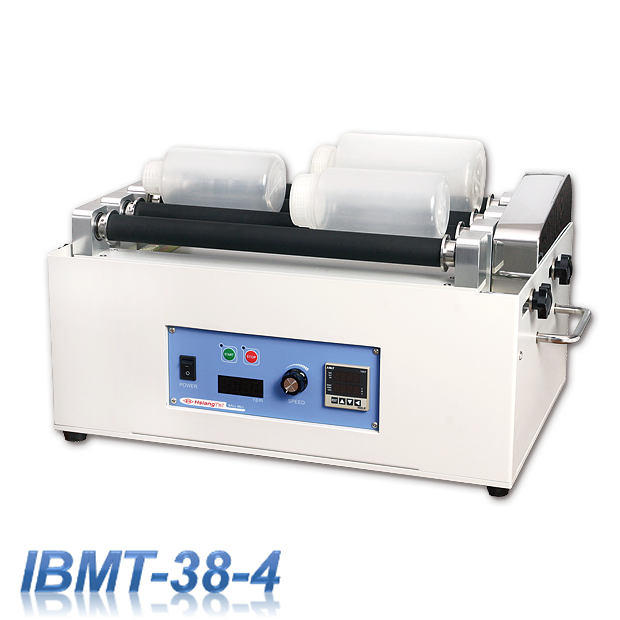

Benchtop ball mill IBMT-38-4

Benchtop ball mill IBMT-38-4

Max. speed 600rpm; with a speed adjusting knob; with a speed digital display; with a digital timer
with an overload-protection-device
DETAIL
●Feature:
1、Stepless-changable speed
2、Digital speed display
3、Digital timer
4、Single or several mill pots can be used, as long as the total size conforms to
      the size range of Pot in the specification table.
5、Distance between rollers is adjustable
6、Rollers are with rolling & swaying functions.
7、With an overloaded protection device



● Specifications:
Model IBMT-38-4
Speed Range 0~600 rpm
Diameter Range of Mill Pot Ø40~130 mm
Roller Quantity Each Mill Machine 4 Pcs
Dimensions of Roller Ø30 x L380 mm
Adjustable Distance Between Two Rollers 50~115 mm
Timer Setting 0~99Hr,59Min
Overall Dimensions W600 x L365 x H286 mm
Motor 90W
Power AC 110/220V, 50/60Hz
●Mill pot is not included.
DM p.1
