Benchtop Ball Mill IBMT-30/45

Benchtop Ball Mill IBMT-30/45

1200 rpm; use the impact force and friction force of the balls in the mill pot(s) rolled to crush, grind and refine the materials; speed tuner with digital speed display; digital timer; with an overload protection device

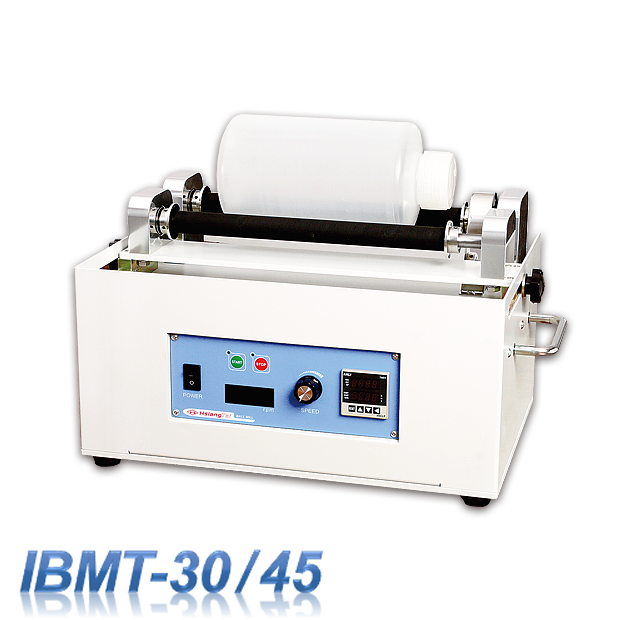

Roller ball mill IBMT-30,45
/
DETAIL
●FEATURE :
1、Stepless-changeable speed
2、Digital speed display
3、With a timer
4、With an overload protection device
5、Suitable for different sizes of mill pots
6、Distance between rollers is adjustable.

●SPECIFICATION :
Model IBMT-30 IBMT-45
Speed 0~1,200 rpm 0~1,200 rpm
Mill Pot Ø100~250 mm Ø100~250 mm
Roller Quantity 2 Pcs 2 Pcs
Roller Size Ø25 x L300 mm Ø25 x L450 mm
Adjustable Distance 95~205 mm 95~205 mm
Time Setting 0~99Hr，59Min 0~99Hr，59Min
Overall dimensions W520 x L300 x H270 mm W670 x L300 x H270 mm
Motor 90W 90W
Power AC 110/220V, 50/60Hz AC 110/220V, 50/60Hz
*Mill pots & balls are necessary to purchase separately.
