  1. Ball Mill Series
Floor Type Ball Mill IBMU-100-1

Floor Type Ball Mill IBMU-100-1

Speed 600 rpm; speed tuner; digital speed display; digital timer; with fuse protection device

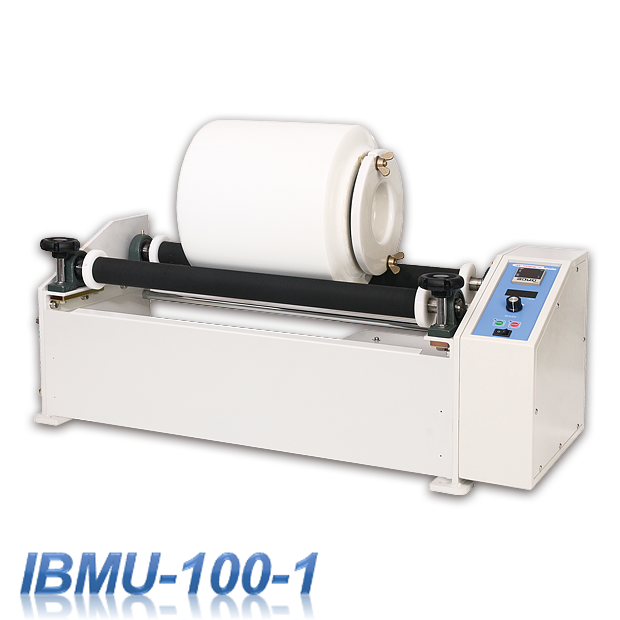

Floor Roller-Type Ball Mill IBMU-100-1
/
DETAIL
●FEATURE :
1、Stepless-changeable speed
2、Digital speed display
3、With a timer
4、Suitable for different sizes of mill pots
5、Distance between rollers is adjustable.

●SPECIFICATION :
Model IBMU-100-1
Speed 0~600 rpm
Acceptable Mill Pot Size Range Ø120~300 mm
Roller Quantity 2 Pcs
Roller Size Ø50 x L650 mm
Adjustable Distance 115~235 mm
Time Setting 0~99Hr，59Min
Overall Dimensions W970 x L384 x H360 mm
Motor 400W
Power AC 110/220V, 50/60Hz
*Mill pots & balls are necessary to purchase separately.
