Standard-Sieve Shaker LS-400

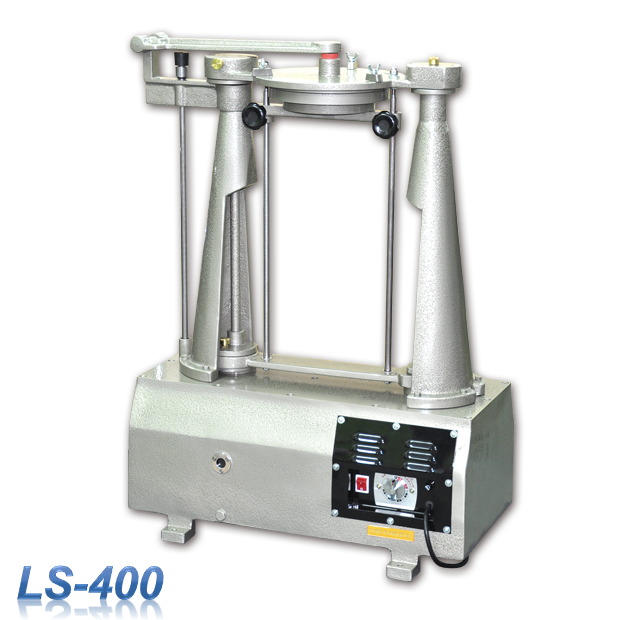

Standard-Sieve Shaker LS-400

156/tpm or 78/tpm option should be confirmed before the production。
Dial Timer, Easy Operation, Fuse Protection Device
DETAIL
●Feature:
1、Standard sieve-shaker model, with both reciprocating and orbital shaking at same time.
2、With a continuously striking device on the top for helping sieving jobs well.


Specification
:
Model LS-400
Speed  0~246(50Hz) /  0~291(60Hz) epm
Tapping 156 / 78 tpm
Timer ON / 0~60 min
Machine Dimensions W400 x L750 x H950 mm
Weight 185 Kgs
Power  AC 110/220V, 50/60Hz
The machine does not come with any sieve; the sieve must be purchased separately.
156/tpm or 78/tpm option should be confirmed before the production。
Standard Sieve
   Dimensions:Ø200 x H60mm
